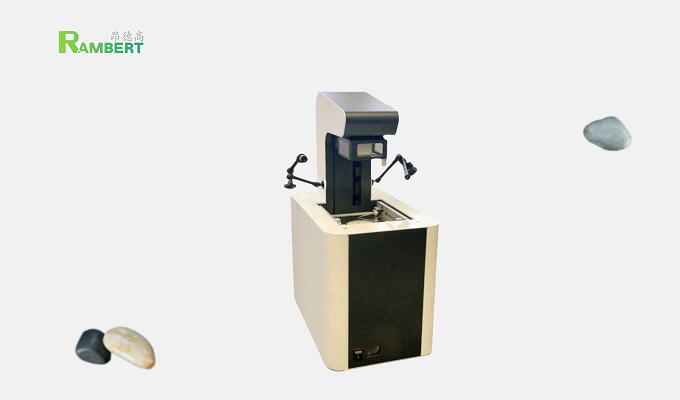

The French METRONELEC automatic solderability tester ST88 NEO can test various components affecting the soldering process, including various types of surface mount devices, through-hole devices, printed circuit boards, fluxes, solder pastes, etc.
The ST88 NEO solderability tester/tin dipping balance/wetting balance can quickly, accurately, and objectively judge the solderability of the tested samples; quantify and output solderability results in units of wetting force and wetting angle, directly reflecting the sample's solderability. It can minimize the impact of external operations on test results, ensure testing accuracy, and maximize the direct comparison of solderability between different samples through the wetting angle method. The ST88 NEO is also recommended by relevant solderability test standards such as IPC/IEC/NF.
The ST88 NEO solderability tester/tin dipping balance/wetting balance connects the tested sample to the sensor through a fixture, immerses it into the alloy at a set temperature under set speed, angle, and time conditions. During this period, it transmits data such as force and time to the computer software through the sensor, forming curves and data files of wetting angle vs. time or wetting force vs. time, which can quantitatively and qualitatively evaluate the "good or bad" solderability of the sample and serve as a quality basis for incoming materials or factory shipments of solderability.
| Immersion Speed | 0.1-50 mm/s |
|---|---|
| Immersion Depth | 0.01-15 mm |
| Immersion Time | 3 - 9999 s |
| Withdrawal Speed | 0.1-50 mm/s |
| Solder Pot Diameter | 80 mm |
| Solder Pot Capacity | 2 kg |
| Solder Ball Diameter (mm) | 1, 2, 3.2 & 4 mm |
| Temperature Range | 0-450°C |
| Temperature Control Accuracy | ±1°C |
| Sensor Linearity | 1% |
| Sensor Accuracy | 0.001 mN |
| Wetting Force Range | 0 - 1 mN - 40 mN or customized |
| Position Sensor | Standard configuration |
| Z-Axis Displacement Accuracy | 0.01 mm |
| Operating Software | Windows 10 |
| Equipment Dimensions | 310 x 500 x 7200 (Note: Please confirm whether the dimension data is accurate.) |
| Power Input | 110-220VAC, 50/60Hz |
| Nitrogen Inlet | 4-6 bar, 4-6 mm conduit |
| Nitrogen Consumption | TBC (To Be Confirmed) |
| Net Weight of Equipment | 40 kg |
| Languages | English, French, German, Chinese, etc. |
